Draw ray diagrams to show the nature, position and relative size

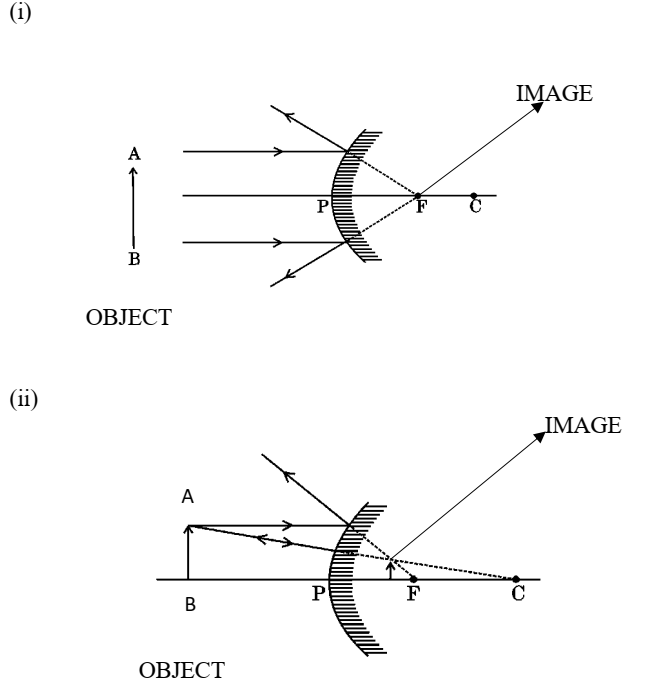

Draw ray diagrams to show the nature, position and relative size of the image formed by a convex mirror when the object is placed (i) at infinity and (ii) between infinity and pole P of the mirror.

• Answer:



• Exam Year: 2025
