Show how would you join three resistors, each of resistance 9 Ω
Electricity (10)Show how would you join three resistors, each of resistance 9 Ω so that the equivalent resistance of the combination is (i) 13.5 Ω (ii) 6 Ω
Answer

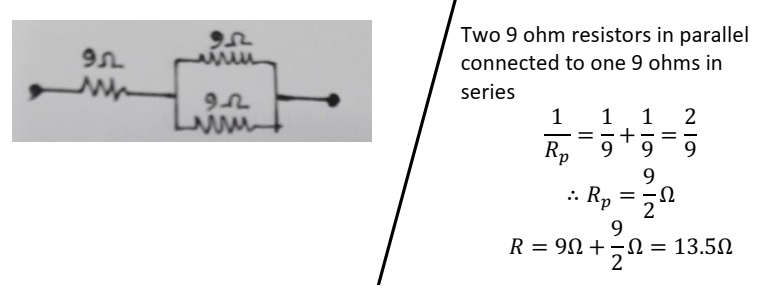

i.

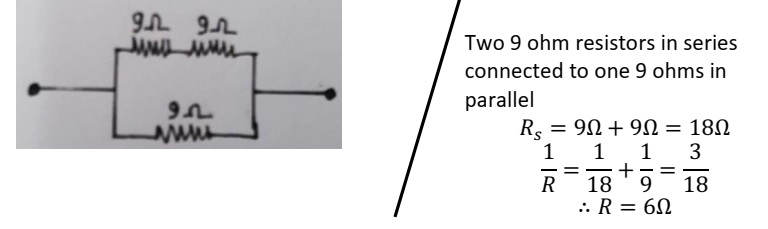

ii.
Exam Year:
2018
