A student traces the path of a ray of light through a glass prism

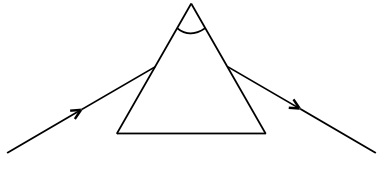

A student traces the path of a ray of light through a glass prism as shown in the diagram, but leaves it incomplete and unlabelled. Redraw and complete the diagram. Also label on it ∠i, ∠e, ∠r and ∠D.

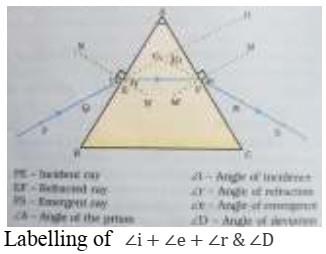

Answer

• Exam Year: 2019
