Three resistors R1, R2 and R3 are connected in parallel and the combination is connected to a battery
Electricity (10)Three resistors R1, R2 and R3 are connected in parallel and the combination is connected to a battery, ammeter, voltmeter and
key. Draw suitable circuit diagram and obtain an expression for the equivalent resistance of the combination of the resistors.

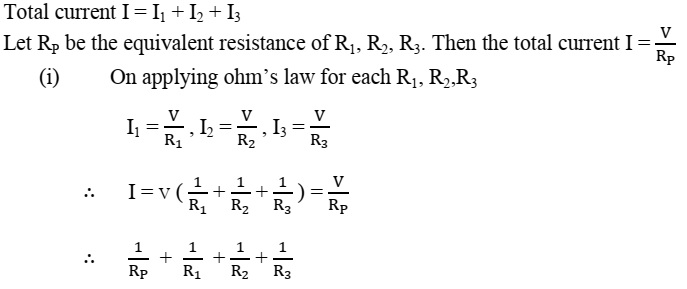

Answer
- Exam Year: 2019
